Description

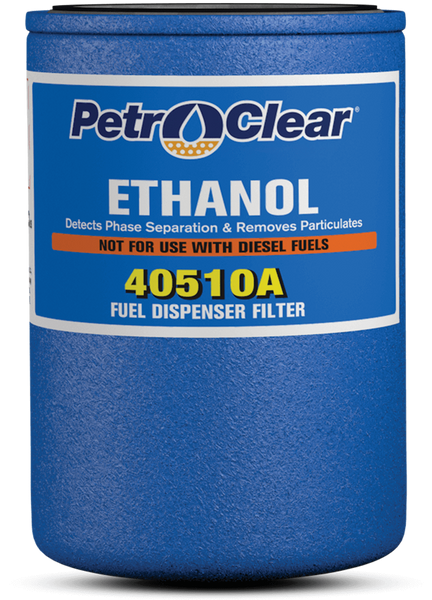

The PetroClear models 40510A is a spin-on filter designed to remove particulate, detect and stop flow of phase separation (Ethanol water) in Ethanol blended fuels. This filter is designed to detect and react to phase separation in Ethanol blended gasoline.
The maximum flow rate for the 40510A is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid (3.4 bar). Collapse pressure is 150 psid (10.3 bar). Maximum operating temperature is 250°F (139°C).
The chemical center core assembly detects and reacts to phase separation and significantly restricts flow through filters.
The 40510A utilizes a standard 1"-12 UNF mounting thread ref. (3/4" ow) required for most spin-on filter adapters used in aftermarket.
Adapters are available for models 40510A and 40530A in aluminum and cast iron. These single adapters are available in both 3/4" and 1" NPT or BSP inlet/outlet threads.
The PetroClear 40510A Cross References with the Cim-Tek 70122, 300MB-10.
| Model | 40510A | |
| Filter Type | Spin-On | |
| Media Type | Cellulose | |
| Micron Rating | 10 Micron (nominal) | |
| Diameter | 3.70" | |
| Height | 5.36" | |
| Mounting Thread | 1" – 12 UNF | |
| Flow Rate | 25 gpm (94.6 lpm) | |
| Flow | 3/4" flow | |
| Shell Thickness | 0.02 | |
| Gasket Material | Buna N | |
| Collapse (Min.) | 150 psid (10.3 bar) | |
| Burst (Min.) | 250 psi (17.2 bar) | |
| Max. Operating Temp. | 250°F (139°C) | |
| Min. Operating Temp. | -20°F (-28.9°C) |
PETROCLEAR FILTERS ARE NOT TO BE USED IN AVIATION FUEL APPLICATIONS.
