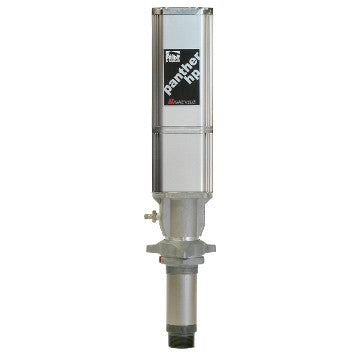

Description
Typical Applications: Automotive Dealerships, Industrial plants, Mining, Mobile Lube, Quick Lubes, Tire Center, Transmission Centers
Fluid Types: Auto Transmission Fluid Pumps, Oil Pumps
Maximum simultaneous dispense points @ 1.5 gal/m (5.7 l/m) per dispense point. Note: pumping distance and pipe diameter will effect dispensing performance.
Features:
- Pressure relief on Pride Series models – built-in safety feature reduces premature wear of hoses and seals.
- Mechanical air valve – more reliable, no stalling and no icing.
- Designed for lower air consumption – extends compressor life.
- Built in muffler – results in quiet operation and eliminates icing.
- Stainless steel pump rod – reduces corrosion and extends seal life.
- Double acting pump – delivers consistent fluid flow with greater dispensing accuracy.
| Pump ratio | 3:1 |
| Operating air pressure range | 30 – 150 PSI (1-10 bar) |
| Pump delivery with SAE 10W-30 oil | 8 gal/m (30 l/m) |
| Air consumption (100 PSI & 4 G/M) | 19.70 SCFM |
| Max fluid stall pressure @150 PSI air | 490 PSI (33.8 bar) |
| Cycles per GAL | 34 |
| Air inlet | 1/4” NPT (F) |
| Fluid inlet | 1” NPT (F), 1 1/2” NPT (M) |
| Fluid outlet | 3/4” NPT (F) |
| Effective air piston diameter | 2.5” (63.5 mm) |
|
Wetted materials |
Carbon steel, Buna-N, stainless steel, nickel plated steel, nylon, ultrathane, zinc plated steel, and aluminum |
