Petro-Clear PCP-E10

Weight:

SKU:

Description

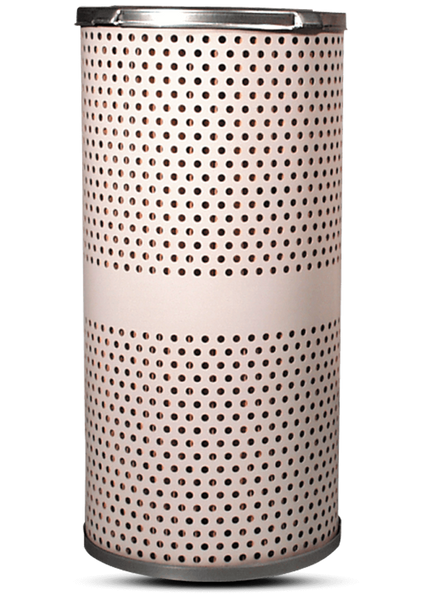

The PetroClear model PCP-E10 is a particulate removing and water sensing replacement element type filter designed for aftermarket, cost efficient particulate filtration of fuels at high volume fueling locations such as truck stops, card lock sites, and industrial and commercial applications.

This filter is a particulate removing replacement element type filters designed to remove particulate from neat gasoline, Ethanol blended gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), Kerosene, fuel oils, lube oils and synthetic fluids. These filters are designed for particulate removal only

PetroClear models PCP-E10 and PCP-E30 replacement elements fit the Cim-Tek® Centurion Series housings and other brands with a 5" x 9" element.

The PetroClear PCP-10 Cross References with the Cim-Tek 30002, E10.



Model PCP-E10
Filter Type Element
Media Type *Cellulose
Micron Rating 10 Micron (nominal)
Diameter 4.50"
Height 9.25"
Flow Rate 30 gpm (114 lpm)
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Max. Operating Temp. 250°F (139°C)
