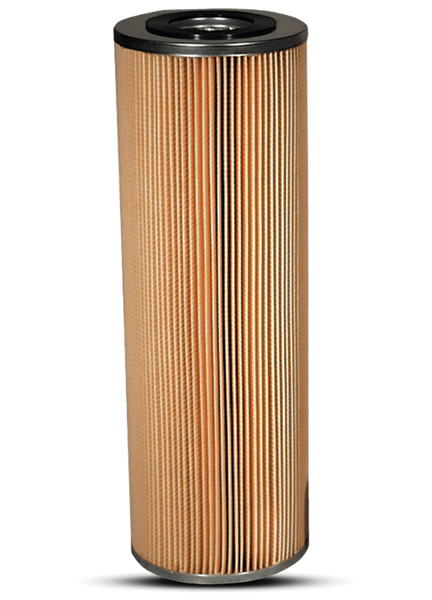

Petro-Clear 61810EP




The PetroClear model 61810EP is a particulate removing replacement element type filter designed to remove particulate from neat gasoline, Ethanol blended gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), Kerosene, fuel oils, lube oils and synthetic fluids.

PetroClear® models 61805EP, 61810EP and 61830EP replacement elements fit the Cim-Tek®, Commercial, Cuno, Facet, Hilco, Hycon, Hytrex, Kaydon, Nugent and Peco housings and other brands with a 6" x 18" element.

The PetroClear 61810EP Cross References with the Cim-Tek 30008, E1300-10.


Model 61810EP
Filter Type Element
Media Type *Cellulose
Micron Rating 10 Micron (nominal)
Diameter 5.98"
Height 17.99"
Flow Rate 120 gpm (405 lpm)
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Max. Operating Temp. 250°F (139°C)
