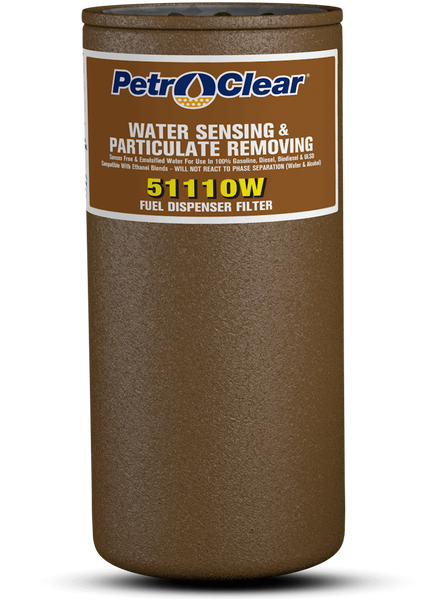

Petro-Clear 51110W




The PetroClear model 51110W is a particulate removing and water sensing spin-on filter designed to remove particulate and to sense both free and emulsified water from neat gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.

The 51110W utilizes a standard 1.5"-16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and/or high-flow applications.

Adapters are available for models 51110W and 51130W in aluminum. These adapters are available in both NPT and BSP inlet/ outlet threads. Inlet/outlet sizes are available in 1" and 1-1/2" single adapters. Adapters are also available in a dual style with both 1.5" and 2" inlet/outlet (2"– 4" bolt SAE flange combination).

The PetroClear 51110W Cross References with the Cim-Tek 70063, 800HS-10.


Model 51110W
Filter Type Spin-On
Media Type Cellulose with super absorbent media
Micron Rating 10 Micron (nominal)
Diameter 5.00"
Height 11.37"
Mounting Thread 1.5" – 16 UNF
Flow Rate 40 gpm (151 lpm)
Flow 1" flow
Shell Thickness 0.020
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Burst (Min.) 200 psi (13.5 bar)
Max. Operating Temp. 250°F (139°C)
