40910WA Petro-Clear Filter

Weight:

SKU:

Categories: All Products, FIlters

Product type: Filters

Brands: Petro-Clear

Tags: Filters

Availability:

Description

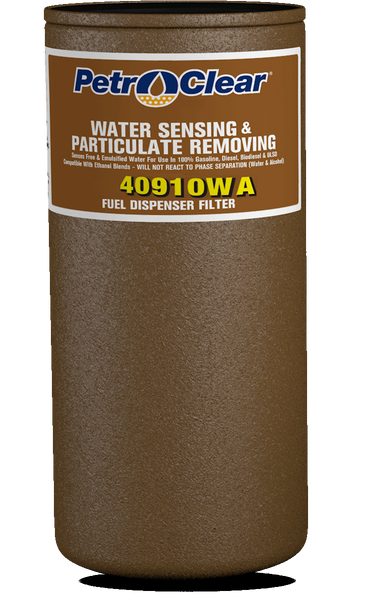

The PetroClear model 40910WA is a particulate and water sensing spin-on filter. This filter is designed to sense water, both free and emulsified, and slow flow as an indicator of the presence of water in neat gasoline and diesel fuels. This filter will not sense nor react to water in Ethanol blended gasoline. (Reaction known as phase separation)

The 40910WA utilizes a standard 1.375"-12 UNF mounting thread ref. (1" ow) required for most spin-on filter adapters used in aftermarket and agricultural applications.

Adapters are available for models 40910WA and 40930WA in cast iron. These single adapters are available in 1" NPT inlet/outlet thread.

Model 40910WA
Filter Type Spin-On
Media Type *Cellulose with Super Absorbent Media
Micron Rating 10 Micron (nominal)
Diameter 3.70"
Height 8.60"
Mounting Thread 1.375" – 12 UNF
Flow Rate 25 gpm (94.6 lpm)
Flow 1" flow
Shell Thickness 0.020
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Burst (Min.) 250 psi (17.2 bar)
Max. Operating Temp. 250°F (139°C)
