Description

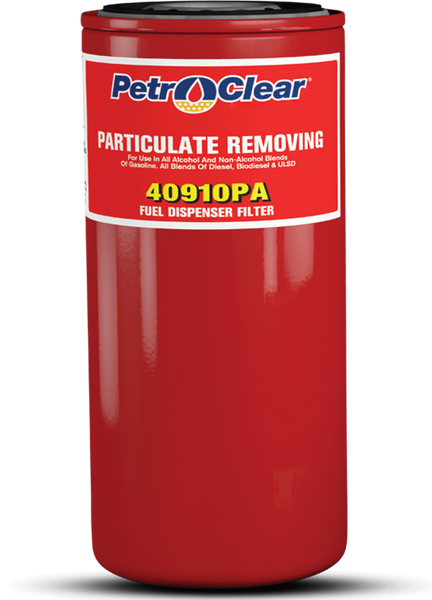

The PetroClear model 40910PA is a particulate removing spin-on filter designed for aftermarket use on a variety of applications from power pumps and agricultural applications as well as, commercial and industrial applications.
The 40910PA utilizes a standard 1.375"-12 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and agricultural applications.
Adapters are available for models 40910PA and 40930PA in cast iron. These single adapters are available in 1" NPT inlet/outlet threads.
| Model | 40910PA |
|---|---|
| Filter Type | Spin-On |
| Media Type | *Cellulose |
| Micron Rating | 10 Micron (nominal) |
| Diameter | 3.70" |
| Height | 8.60" |
| Mounting Thread | 1.375" – 12 UNF |
| Flow Rate | 25 gpm (94.6 lpm) |
| Flow | 1" flow |
| Shell Thickness | 0.020 |
| Gasket Material | Buna N |
| Collapse (Min.) | 150 psid (10.3 bar) |
| Burst (Min.) | 250 psi (17.2 bar) |
| Max. Operating Temp. | 250°F (139°C) |
