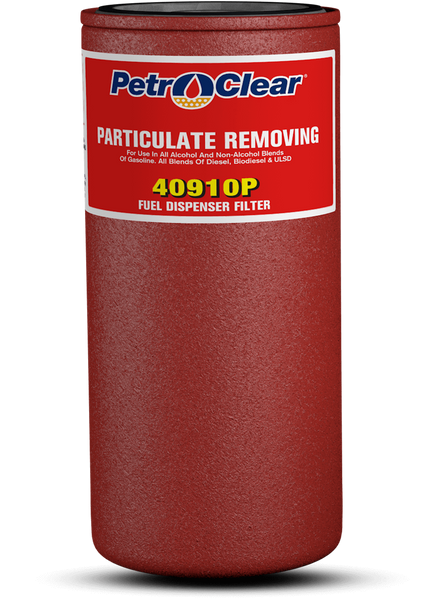

Petro-Clear 40910P




The PetroClear model 40910P is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.

The 40910P utilizes a standard 1" – 12 UNF mounting thread ref. (3/4" flow) required for most spin-on filter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers, as well as with adapters used in the aftermarket.

Adapters are available for models 40910P and 40930P in aluminum and cast iron. Single adapters are available in both 3/4" and 1" NPT and BSP inlet/outlet threads.

The PetroClear 40910P Cross References with the Cim-Tek 70094, 260-10.


Model 40910P
Filter Type Spin-On
Media Type Cellulose
Micron Rating 10 Micron (nominal)
Diameter 3.70"
Height 8.60"
Mounting Thread 1" – 12UNF
Flow Rate 25 gpm (94.6 lpm)
Flow 3/4" flow
Shell Thickness 0.020
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Burst (Min.) 250 psi (17.2 bar)
Max. Operating Temp. 250°F (139°C)
