Petro-Clear 40910P-AD

Weight:

SKU:

Description

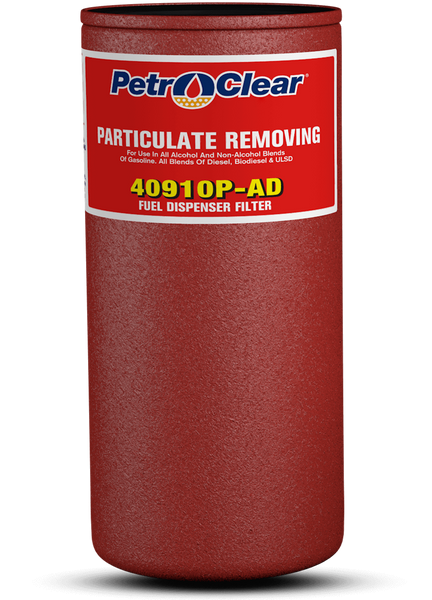

The PetroClear model 40910P-AD is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.

The 40910P-AD utilizes a standard 1.5"-16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and/or high- ow applications, such as in Gilbarco, Wayne, Bennet, Tokheim and other major manu- facturers’ dispensers.

Adapters are available for models 40910P-AD and 40930P-AD in aluminum. These single adapters are available in 3/4" and 1" NPT and BSP inlet/outlet threads.

The PetroClear 40910P-AD Cross References with the Cim-Tek 70034, 450-10.



Model 40910P-AD
Filter Type Spin-On
Media Type *Cellulose
Micron Rating 10 Micron (nominal)
Diameter 3.70"
Height 8.60"
Mounting Thread 1.5" – 16 UNF
Flow Rate 25 gpm (94.6 lpm)
Flow 1" flow
Shell Thickness 0.020
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Burst (Min.) 500 psi (34.5 bar)
Max. Operating Temp. 250°F (139°C)
