40530W Petro-Clear Filter

Weight:

SKU:

Categories: All Products, FIlters

Product type: Filters

Brands: Petro-Clear

Tags: Filters

Availability:

Description

The PetroClear model 40530W is a particulate removing and water sensing spin-on filter designed to remove particulate and to sense both free and emulsified water from neat gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.

The PetroClear model 40530W is a particulate removing and water sensing spin-on filter designed to remove particulate and to sense both free and emulsified water from neat gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.

When this model 40530W absorb 5.9 ounces (175 mil) of water from neat gasoline or diesel fuels, flow will be noticeably slow.

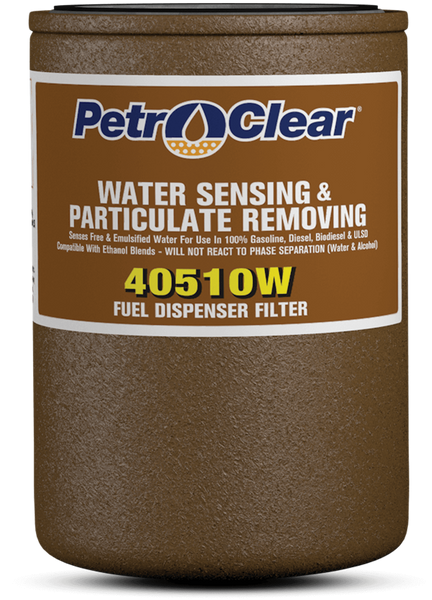

The 40510W utilizes a standard 1.5"-12 UNF mounting thread ref. (3/4" flow) required for most spin-on filter adapters used in aftermarket and/or high-flow applications such as Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers.

Adapters are available for models 40510W and 40530W in aluminum and cast iron. These single adapters are available in 3/4" and 1" NPT or BSP inlet/outlet threads.

Model 40530W
Filter Type Spin-On
Media Type Cellulose
Micron Rating 30 Micron (nominal)
Diameter 3.70"
Height 5.36"
Mounting Thread 1" – 12 UNF
Flow Rate 25 gpm (94.6 lpm)
Flow 3/4" flow
Shell Thickness 0.02
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Burst (Min.) 250 psi (17.2 bar)
Max. Operating Temp. 250°F (139°C)

PETROCLEAR FILTERS ARE NOT TO BE USED IN AVIATION FUEL APPLICATIONS.
