Description

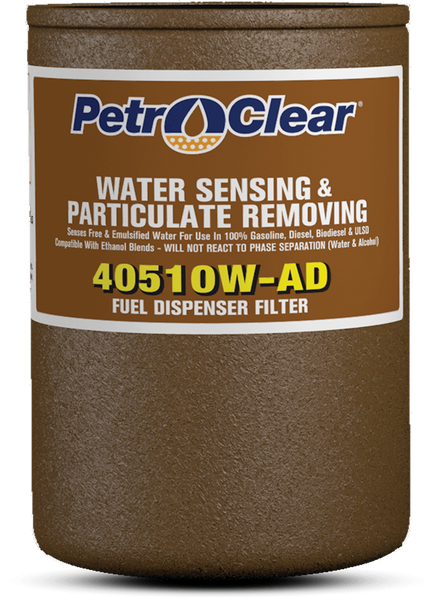

The PetroClear model 40510W-AD is a particulate removing and water sensing spin-on filter designed to remove particulate and to sense both free and emulsified water from neat gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils. Slow flow as an indicator of the presence of water in neat gasoline and diesel fuels. This filter will not sense nor react to water in Ethanol blended gasoline. (Reaction known as phase separation)
PetroClear model 40510W-AD utilize a standard 1.5"-16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and/or high-flow applications such as Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers.
Adapters are available for model 40510W-AD in aluminum. These single adapters are available in 3/4" and 1" NPT or BSP inlet/outlet threads.
The PetroClear 40510W-AD Cross References with the Cim-Tek 70060, 400HS-10.
| Model | 40510W-AD |
| Filter Type | Spin-On |
| Media Type | Cellulose with Super Absorbent Media |
| Micron Rating | 10 Micron (nominal) |
| Diameter | 3.70" |
| Height | 5.36" |
| Mounting Thread | 1.5" – 16 UNF |
| Flow Rate | 25 gpm (94.6 lpm) |
| Flow | 1" flow |
| Shell Thickness | 0.02 |
| Gasket Material | Buna N |
| Collapse (Min.) | 150 psid (10.3 bar) |
| Burst (Min.) | 250 psi (17.2 bar) |
| Max. Operating Temp. | 250°F (139°C) |
| Min. Operating Temp. | -20°F (-28.9°C) |
