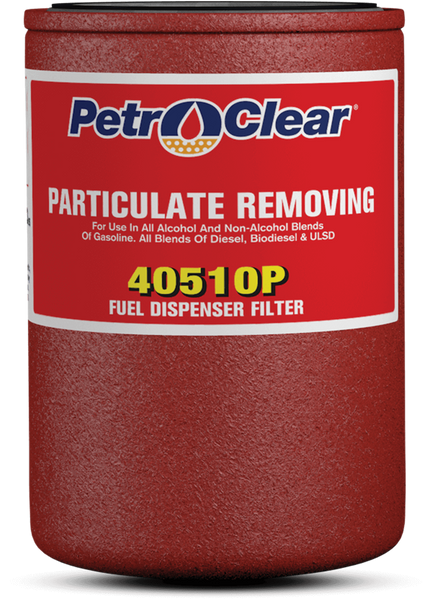

The PetroClear model 40510P is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
PetroClear model 40510P utilizes a standard 1"-12 UNF mounting thread ref. (3/4" flow) required for most spin-onfilter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers, as well as with adapters used in the aftermarket.
The PetroClear 40510P Cross References with the Cim-Tek 70010, 300-10.
|Micron Rating||10 Micron (nominal)|
|Mounting Thread||1" – 12 UNF|
|Flow Rate||25 gpm (94.6 lpm)|
|Gasket Material||Buna N|
|Collapse (Min.)||150 psid (10.3 bar)|
|Burst (Min.)||250 psi (17.2 bar)|
|Max. Operating Temp.||250°F (139°C)|
