Description

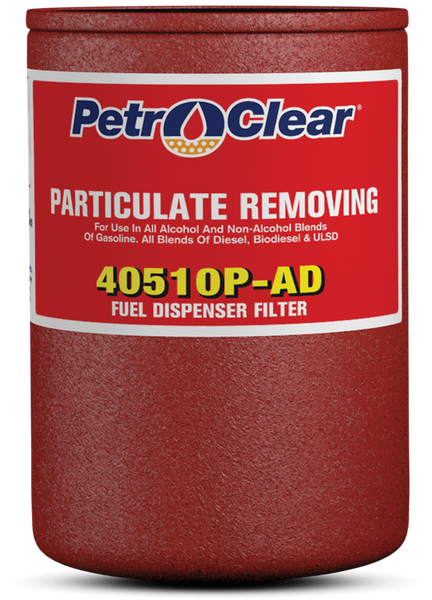

The PetroClear model 40510P-AD is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
PetroClear model 40510P-AD utilize a standard 1.5" – 16 UNF mounting thread ref. (1" ow) required for most spin-on filter adapters used in aftermarket and/or high- ow applications such as Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers.
Adapters are available for the 40510P-AD in aluminum. These single adapters are available in 3/4" and 1" NPT and BSP inlet/outlet threads.
WILL NOT REACT TO WATER IN FUELS OR PHASE SEPARATION IN ETHANOL BLENDED GASOLINE TO SLOW FLOW.
The PetroClear 40510P-AD Cross References with the Cim-Tek 70015, 400-10.
| Model | 40510P-AD |
| Filter Type | Spin-On |
| Media Type | Cellulose |
| Micron Rating | 5 Micron (nominal) |
| Diameter | 3.7 |
| Height | 5.36" |
| Mounting Thread | 1.5" – 16 UNF |
| Flow Rate | 25 gpm (94.6 lpm) |
| Flow | 1" flow |
| Shell Thickness | 0.02 |
| Gasket Material | Buna N |
| Collapse (Min.) | 150 psid (10.3 bar) |
| Burst (Min.) | 250 psi (17.2 bar) |
| Max. Operating Temp. | 250°F (139°C) |
| Min. Operating Temp. | -20°F (-28.9°C) |
| Other Features | Epoxy Coated Shell |
