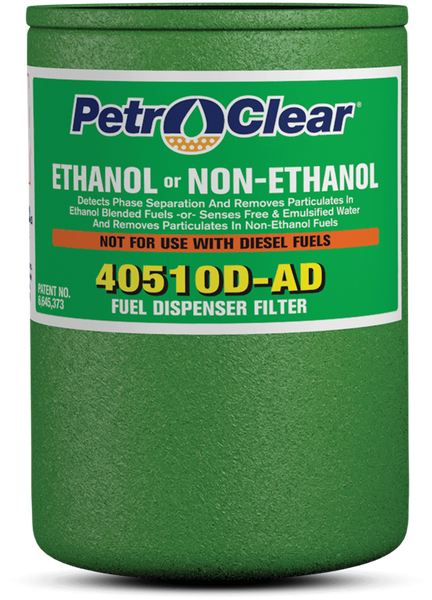

Petro-Clear 40510D-AD




PetroClear model 40510D-AD is a particulate removing, phase separation and water sensing spin-on filter. This filter is designed to sense water, both free and emulsified, and slow flow as an indicator of the presence of water in neat gasoline. This filter is also designed to detect and react to phase separation. Slow flow is an indicator of the presence of phase separation in Ethanol blended gasoline.

Once PetroClear® model 40510D-AD has absorbed 5.9 ounces (175 mil) of water from neat gasoline, flow will be noticeably slow.

The chemical center core assembly detects and reacts to phase separation and significantly restricts flow through the filter.

PetroClear model 40510D-AD “Dual Purpose” high-flow filters utilize a standard 1.5" – 16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and/or today’s high-flow fuel applications such as in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers.

Adapters are available for model 40510D-AD in aluminum. Inlet/outlet sizes are available in 3/4" and 1" NPT or BSP inlet/outlet threads.


The PetroClear 40510D-AD Cross References with the Cim-Tek 70120, 400MB-10.

Model 40510D-AD
Filter Type Spin-On
Media Type Cellulose with Super Absorbent Media and Chemical Core
Micron Rating 10 Micron (nominal)
Diameter 3.70"
Height 5.36"
Mounting Thread 1.5" – 16 UNF
Flow Rate 25 gpm (94.6 lpm)
Flow 1" flow/td>
Shell Thickness 0.02
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Burst (Min.) 500 psi (34.5 bar)
Max. Operating Temp. 250°F (139°C)
Min. Operating Temp. -20°F (-28.9°C)
