Description

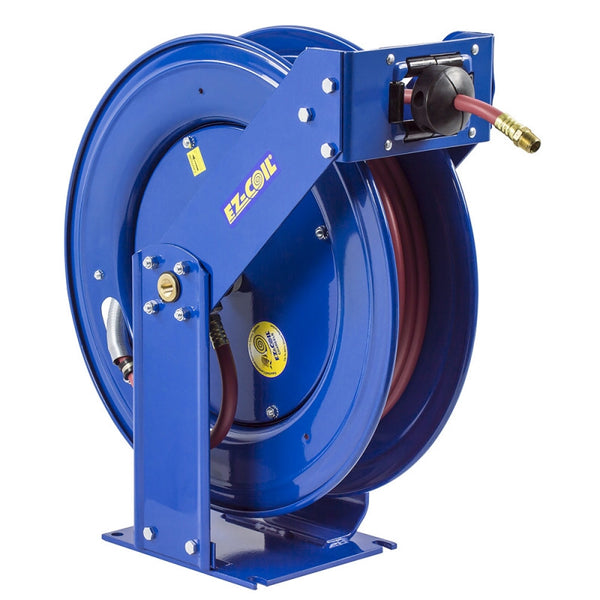

COXREELS T-Series “Truck Mount” spring driven hose reels are the toughest hose reels in the spring driven line. The extra large chassis with dual pedestal-style arms and Coxreels’ Super Hub provides triple axle support while reducing vibration and strengthening the structural integrity of the reel. Making it perfect for off-road applications that demand reliability in the most abusive and demanding environments.
Swivel
- External fluid path with machined from solid brass 90°
- full-flow NPT swivel inlet (Zinc plated steel swivel on HP models)
- Swivel Seals: NITRILE
- Electroless nickel plated steel swivel on 1” models
Design and Structure
- Sturdy dual pedestal reel features Coxreels’ exclusive
- Super Hub™ dual axle support system
- Built for rugged mobile applications
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Stainless Steel rollers on 3/4” & 1” models
- Solid one piece, heavy gauge 1/4” steel base & support posts for maximum strength
- 1” solid steel axle & lubricated precision bearings for smooth rotation
Retraction
- Controlled retraction speed up to 80% slower on EZ-Coil models
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
