Description

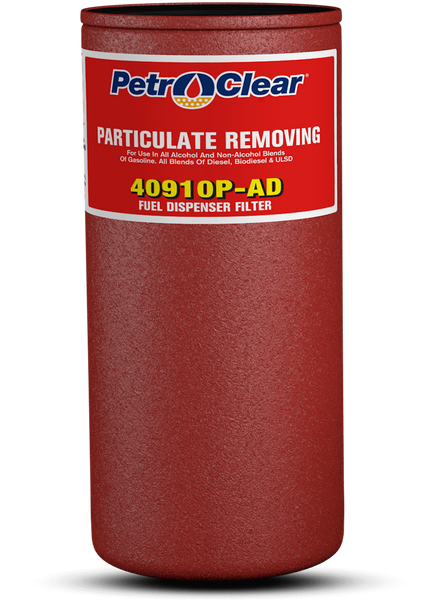

The PetroClear model 40910P-AD is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
The 40910P-AD utilizes a standard 1.5"-16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and/or high- ow applications, such as in Gilbarco, Wayne, Bennet, Tokheim and other major manu- facturers’ dispensers.
Adapters are available for models 40910P-AD and 40930P-AD in aluminum. These single adapters are available in 3/4" and 1" NPT and BSP inlet/outlet threads.
The PetroClear 40930P-AD Cross References with the Cim-Tek 70027, 450-30.
| Model | 40910P-AD |
|---|---|
| Filter Type | Spin-On |
| Media Type | *Cellulose |
| Micron Rating | 10 Micron (nominal) |
| Diameter | 3.70" |
| Height | 8.60" |
| Mounting Thread | 1.5" – 16 UNF |
| Flow Rate | 25 gpm (94.6 lpm) |
| Flow | 1" flow |
| Shell Thickness | 0.020 |
| Gasket Material | Buna N |
| Collapse (Min.) | 150 psid (10.3 bar) |
| Burst (Min.) | 500 psi (34.5 bar) |
| Max. Operating Temp. | 250°F (139°C) |
